DMB-8808S NEW Classic Multi-channel Wowza FMS Youtube Server 16 groups TS over IP SD IPTV H.264 8*CVBS inputs streaming Encoder

FOB Reference Price:Get Latest Price
$399.00 - $599.00 / Pieces | 1 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces)
Software (Min. Order: 1 Pieces)
Hardware (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DIGICAST
Model Number:
DMB-8808S Classic Encoder
Nature:
Live Streaming IPTV Video Encoder
Compression:
H.264 Main Profile / H.264 High Profile and AAC audio
Protocol:
RTMP / RTSP / HTTP / UDP protocol
Output respect ratio:
16:9 and 4:3 adjustable
Audio Compression:
AAC , MP3
Resolution:
720x576
Input:
8*CVBS+8*3.5mm
Output:
16 groups TS over IP output
Bitrate:
VBR/CBR
Stream:
16 groups stream
Supply Ability
Supply Ability:
500 Piece/Pieces per Month for cable tv digital encoder
Packaging & Delivery
Packaging Details
SD Internet IPTV Streaming Encoder 8* CVBS input Encoder H.264 For HTTP/RTMP/RTSP IP Out package by 1pc/carton
Port
Shanghai,Ningbo,hangzhou
HOTSALE

DMB-8800A-EC Classic HD+3.5mm

Input: 1*HD+3.5mm

Output: TS over IP(1000M)

DMB-8800A-EC Classic SDI IN

Input: 1*SDI in, without 3.5mm in

Output: TS over IP(1000M),Up to 1080P60fps


DMB-8900B Classic Decoder

Input: IP(HLS/RTSP/UDP/RTMP))

Output: 1*HD/CVBS+3.5mm, USB port for Mouse

DMB-5120 4-Channel Mux-Scrambling QAM Modulator

Input: options 16*ASI or 4*ASI or 8*DVB-S2/S Tuner in

Output: 4*QAM RF+IP(GigE) out

DMB-9008B 8-Channels Professional Receiver

Input: 8*Tuner(DVB-S/S2/C/ATSC optional), without CI slot(FTA)
Output: 246*SPTS or 14*MPTS over IP(GigE)+2*ASI(independent)

DMB-9004CIA 4-Channels Professional Receiver

Input: 4*Tuner+1*ASI in(de-mux)+4*IP; 4*CI decryption

Output: 4+4*ASI+IP(GigE,4*MPTS or 48*SPTS with UDP/RTP/RTSP)

ISS-7000 40 Channels IPTV Streaming Forwarding Server

Input: IP Streams
IP Output(Max): 40 Channels

DMB-8000 ProVideo Streaming Transcoder

Input: IP Streams, File, SDI(option), CVBS(option), HD(option);
IP Output(Max): H.264: 8*576P/480P@30/25fps

ISS-9000 IPTV Streaming Server

Input: IP Streams, File
IP Output(Max.): 1K concurrent

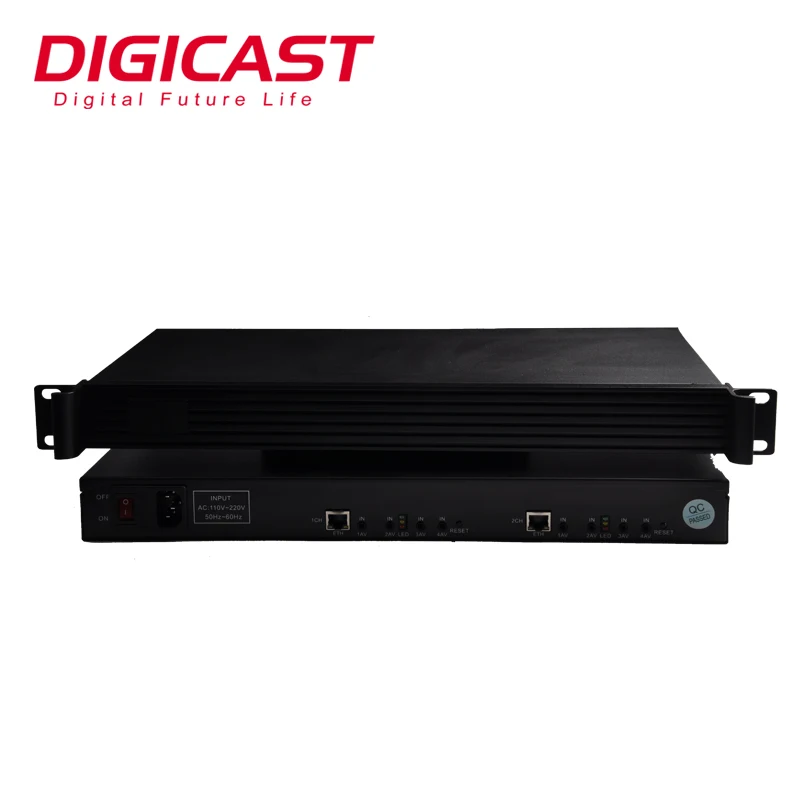

DMB-8808S Classic

DMB-8808S Classic Provideo Streaming Encoder

8*CVBS input + 8*3.5mm in

Specification

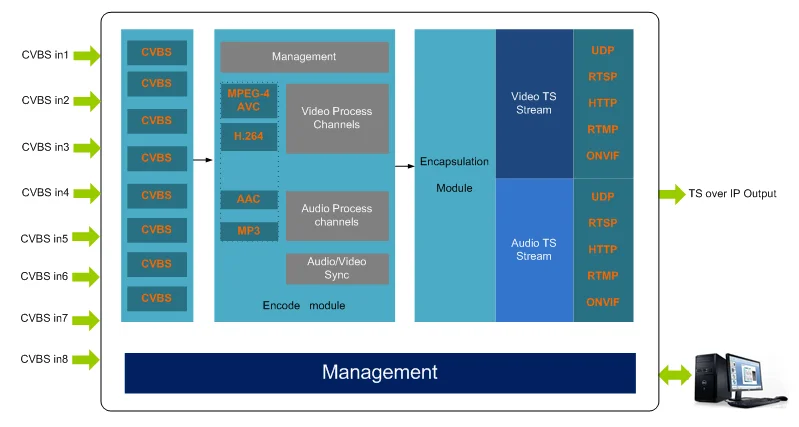

OVERVIEW

DMB-8808S Classic Provideo Streaming Encoder has 8*CVBS (AV) input working at the same time. Meanwhile, it outputs 16 groups stream by TS over IP transmission in H.264 Compression(Video), AAC, MP3 Compression(audio) with different resolutions, bit-rates and protocols for delivering services to multiple Internet connected devices at the same time, including smart-phones, tablets, different size TVs and other mobile device. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth. It can be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.

FEATURES

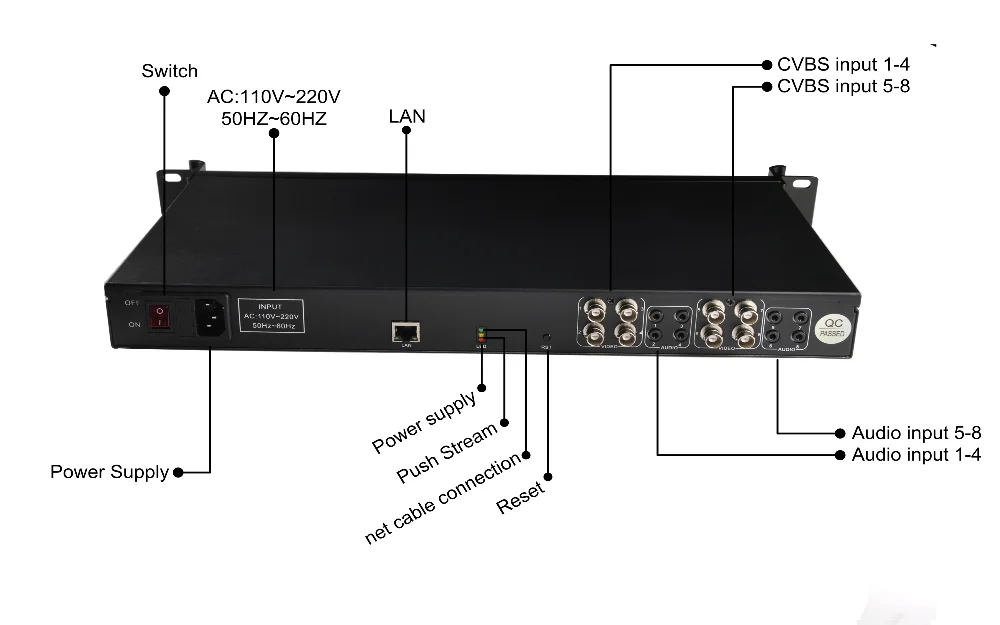

* Support 8*CVBS input + 8*3.5mm
* Output respect ratio 16:9 and 4:3 adjustable
* Up to 16 groups TS over IP with 16 different resolutions and 16 different bitrates
* Offering H.264 Video Compression
* Workable under RTSP/RTP/HTTP, UDP unicast and multicast, RTMP(Username and password verification allowed under RTMP)
* Support ONVIF Network Video Protocol
* Configurable of multi-protocol, multi-resolution and multi-stream and low bit-rate by H.264 with high quality image
*Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC)
* Encoding profile: H.264/AVC BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
* Bit-rate mode CBR/VBR,16Kbps~12Mbps
* Video packing: FFMPEG/ VLC
* Transport method: TCP, UDP, 1000M (RJ45 duplex interface)
* Web-based management easy for configuration.
* Scrollable English OSD, picture overlapping and logos are realizable while letters and symbols can be displayed anywhere in the screen
* Image setting: Contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering
* Audio: line in (left&right)
* The setting comes into effect once finished while reboot is unnecessary
* Default configuration can be done by one key recovery
* WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX

SPECIFICATIONS






VIDEO SPECIFICATIONS
Video compression: H.264/MPEG-4 AVC
Video inputs: 8*CVBS input
Input resolution:
720x576, 720x540, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, auto
Output resolution:
    CVBS main stream: NTSC: 720X480(MAX.)
                                        PAL: 720X576(MAX.)
    CVBS sub-stream:   NTSC: 720X480(MAX.)
                                        PAL: 720X576(MAX.)

Bit-rate: 16kbps~12Mbps, CBR/VBR
Video Frame Rate: 25/30fps
OSD: text, logo, scroll caption


AUDIO SPECIFICATIONS
Input interface: 8*CVBS audio, 8*3.5mm line in
Audio compression: AAC, MP3
Sampling Rate 32KHz, 44.1 KHz, 48 KHz etc.
Audio Bit-rate: 48Kbps, 64 Kbps, 96 Kbps, 128 Kbps, 16 Kbps, 192 Kbps, 256 Kbps, 384Kbps



OUTPUTS
Transport protocol: TS over IP output, RTSP, HTTP, RTMP, UDP multicast/unicast, ONVIF protocol
Support output up to 16 groups TS over IP streams with 16 different resolutions and 16 different bitrates by 8 CVBS channel input
Support RTMP Username and Password for verification of IPTV Server
Connector: RJ45, 100M/1000M
GENERAL OPTIONS

SYSTEM
Configuration Interface: Web-based
Remote Upgrade: via network
Connector: RJ45, 100M/1000M Ethernet interface


PHYSICAL AND POWER
Voltage: 110~220V
Consumption: 18~20W
Operating temperature: 0~50°C
Dimensions: 483mm(W)*240mm(D)*44.5mm(H)
Weight: 3kg/pc

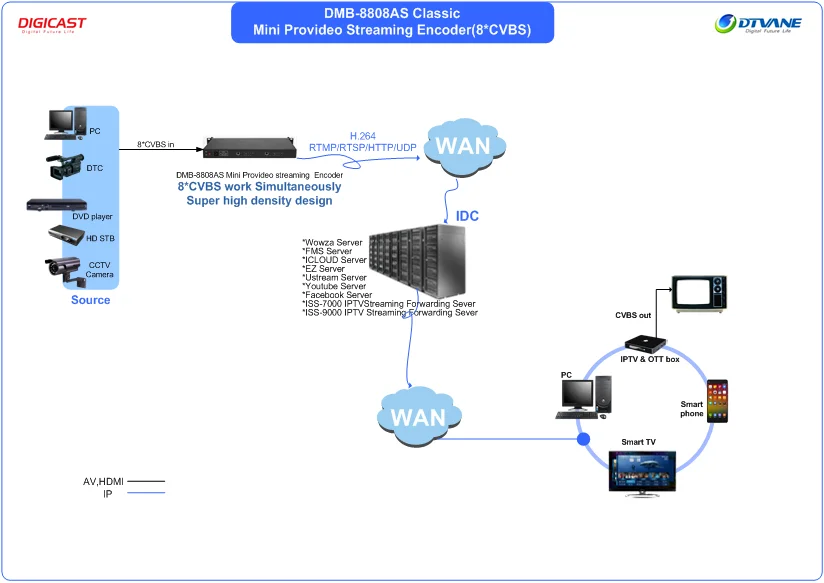

Application &Diagram

IPTV System

OTT System

Internet TV

Digital Signage Project

Remote Video Conference

Video Monitoring



Diagram
